Model: ZW-DW2701
Screen Size: 27 Inch
Panel Type: IPS
Resolution: 1920 × 1080
Brightness: 300 cd/m²
Color Gamut: 99% sRGB
Refresh Rate: 60Hz
Response Time: 8ms

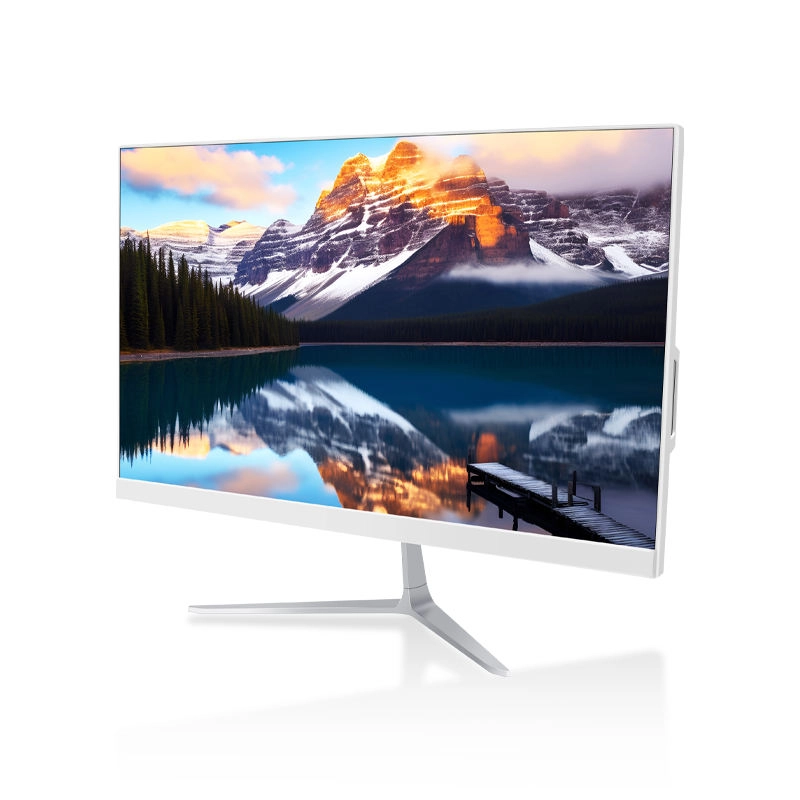

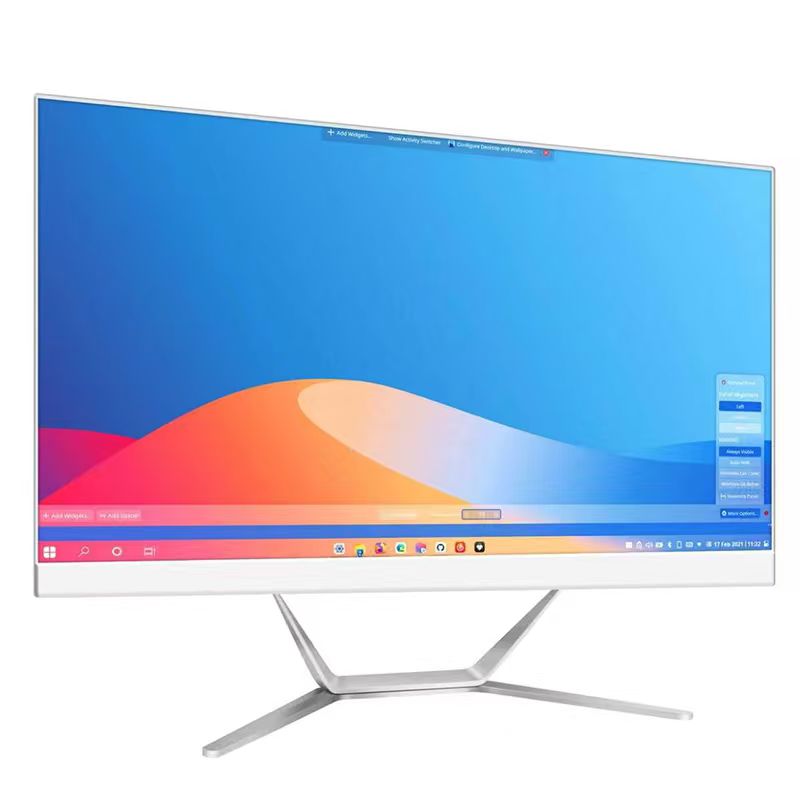

This 27-inch IPS all-in-one computer blends a sleek, modern design with reliable performance, perfect for home, office, and multimedia use. Featuring a 1920×1080 display, 60Hz refresh rate, and 8ms response time, it delivers crisp visuals with 72% NTSC color coverage. Powered by 3rd to 14th Gen Intel processors, 8GB/16GB DDR3 memory, and optional M.2 NVMe SSD storage, it handles everyday tasks with smooth responsiveness.
Equipped with built-in Wi-Fi 5.0, Bluetooth 4.2, and dual 2W speakers, this versatile all-in-one computer keeps you connected and entertained. The space-saving design includes a fixed or optional lifting bracket, plus an anti-theft lock hole for added security. Whether for students, remote professionals, or casual home users, this 27‑inch all-in-one computer delivers a compact, tidy, and dependable all‑in‑one computing experience.
| Display | Model | ZW-DW2701 |
| Size | 27 inches（PN270CU01-2） | |
| Panel Type | IPS | |
| Resolution | 1920x1080 | |
| Point spacing | 0.1038×0.3114 mm (H×V) | |
| Display Brightness | 300 cd/m² (Typ.) | |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) | |
| Support colors | 16.7M , 99% sRGB | |
| Refresh rate | 60Hz | |
| Contrast ratio | 166.6673611 | |
| Screen ratio | 0.672916667 | |
| Response time | 8(Typ.)(G to G) | |
| Motherboard | Motherboard model | HM65、HM86、H110、H310( optional） |
| Processor | Motherboard model | Supports 3-14th generation processors |
| Dominant frequency | Generate data based on the selected processor | |
| Core Thread | Generate data based on the selected processor | |
| Memory | Type | DDR4-SO-DIMM |
| Capacity | 8G、16G、32G(内寸频率2666MHz) | |
| SSD | Type | M.2 NGFF （M.2 NVME optional） |
| Capacity | 256GB (512GB, 1TB optional) | |
| CPU | i3 3110M、i5 3320M、i5 3340M、i5 3360M、i7 3520M、i7 3540M、 i3 4000m、i3 4100m、i3 4110m、i5 4200m、i5 4210m、i5 4300m、i5 4310m、i5 4330m、i5 4340m、i7 4710MQ、i7 4702Q、i7 4712MQ、i7 4800MQ、i7 4810MQ、i7 4900MQ、i7 4910MQ、i7 4930MX、i7 4940MX、i3 6110、i5 6402P、i5 6400、i5 6500、i5 6600、i7 6700、i3 7100、i3 7300、i3 7320、i5 7400、i5 7500、i5 7600、i7 7700、i3 8100、i5 8400、i5 8500、i5 8600、i7 8700、i3 9100、i3 9320、i5 9400、i5 9500、i5 9600、i7 9700i3 6代 6110、i5 6代 6402P、i5 6代 6400、i5 6代 6500、i5 6代 6600、i7 6代 6700、i3 7代 7100、i3 7代 7300、i3 7代 7320、i5 7代 7400、i5 7代 7500、i5 7代 7600、i7 7代 7700、i3 8代 8100、i5 8代 8400、i5 8代 8500、i5 8代 8600、i7 8代 8700、i3 9代 9100、i3 9代9320、i5 9代 9400、i5 9代 9500、i5 9代 9600、i7 9代 9700、 | |
| System | operating system | Win10 and Win11 are optional |
| Multi coal body | Camera | 300W, 500W with extra cost (supports external camera) |
| Horn specifications | 2 * 2W (4 Ω 3W) (standard) | |
| WIFI/Bluetooth | WIFI 5.0, Bluetooth 4.2 (standard) | |
| Power Supply | External adapter | （Power adapter 19V6.3A） |

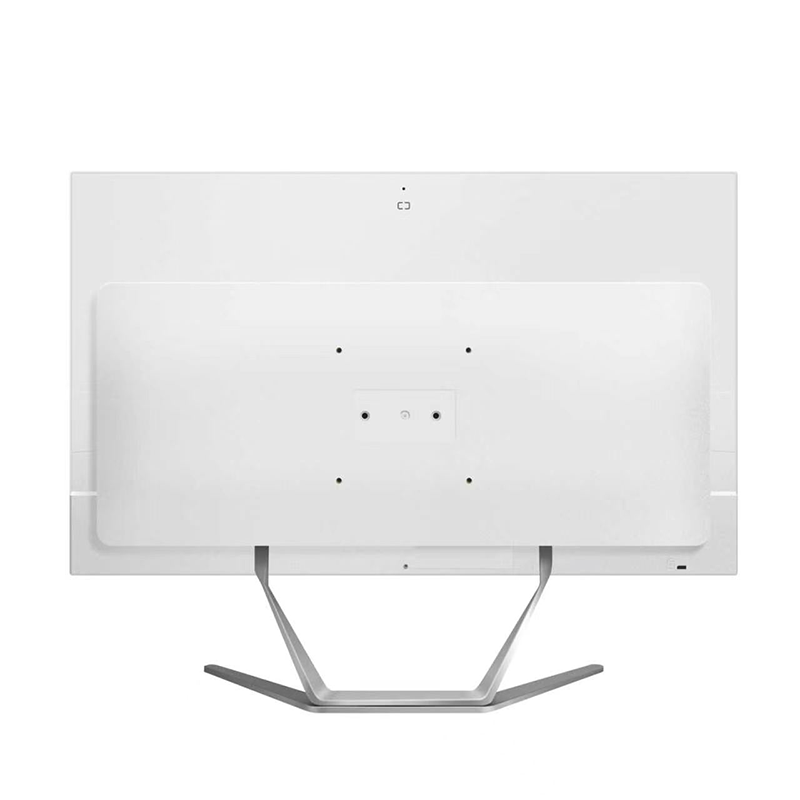

| Structural Design | Bracket ID | Fixed bracket (optional lifting bracket) |
| Pitch | -5°±20° | |
| switch | have | |
| Rear shell RGB lighting effect design | not have | |
| Anti theft lock hole | have | |

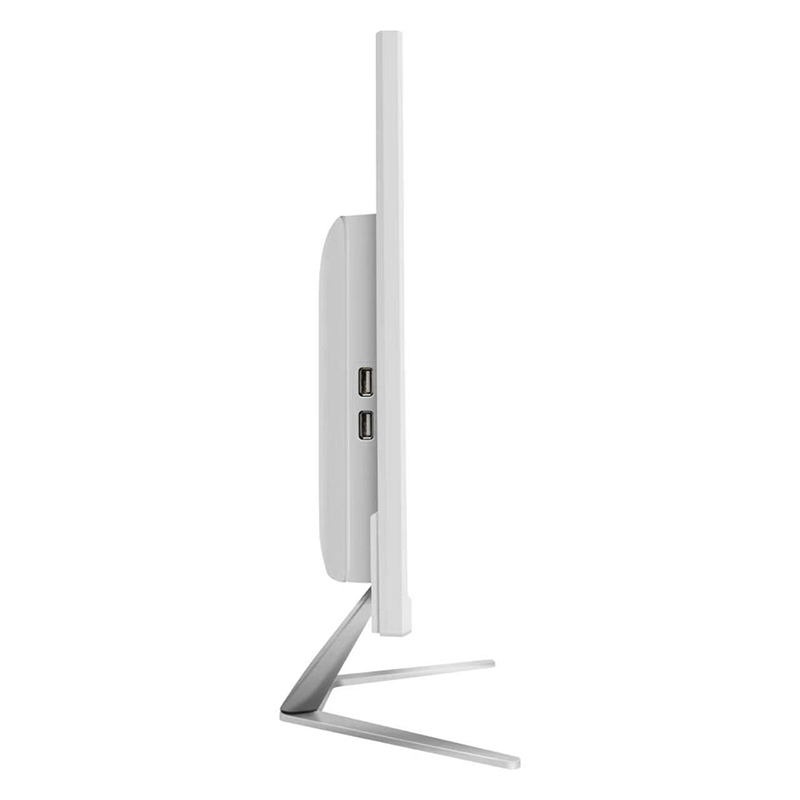

| Product Interface | DC-IN +HDMI +VGAI +USB + RJ45 LAN +MIC-IN | |
| Accessories LIst | The power adapter，power line | |
Model: ZW-DW215
Screen Size: 21.5 Inch
Panel Type: IPS
Resolution: 1920 × 1080
Brightness: 300 cd/m²
Color Gamut: 99% sRGB
Refresh Rate: 60Hz
Response Time: 8ms
Model: ZW-QW2381
Screen Size: 23.8 Inch
Panel Type: IPS
Resolution: 1920 × 1080
Brightness: 300 cd/m²
Color Gamut: 70% NTSC
Refresh Rate: 60Hz
Contrast Ratio: 1200:1
Response Time: 5ms
