Panel Brand: CSOT / BOE / HKC
Panel Size: 15.6″ LED Backlight
Resolution: 1920 × 1080 (FHD)
Aspect Ratio: 16:9
Display Area: 344.16 × 193.59 mm
Pixel Pitch: 0.17925 × 0.17925 mm (141 PPI)
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 1200:1 (Typ.)

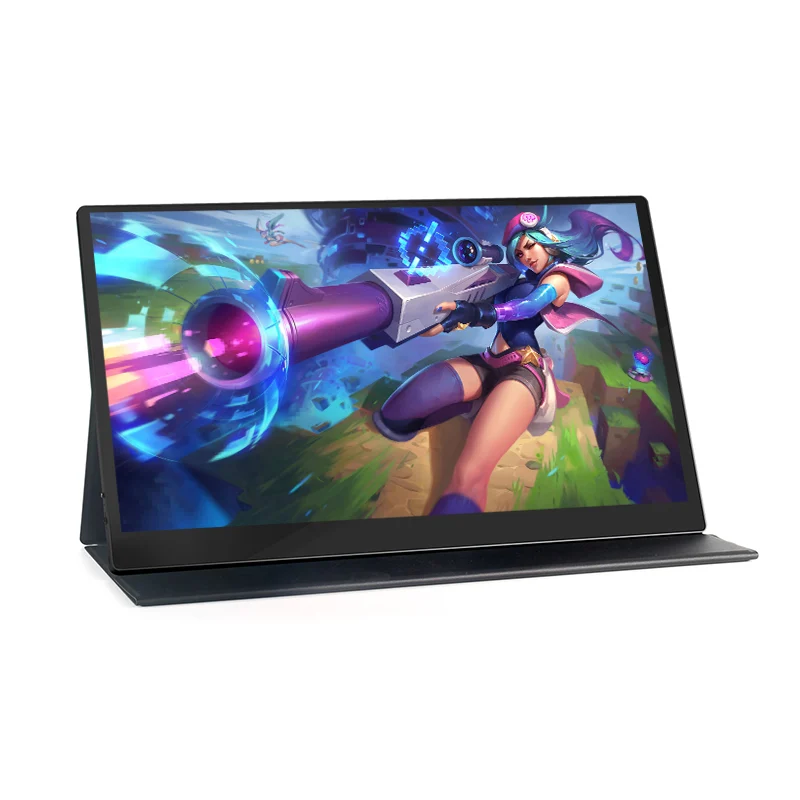

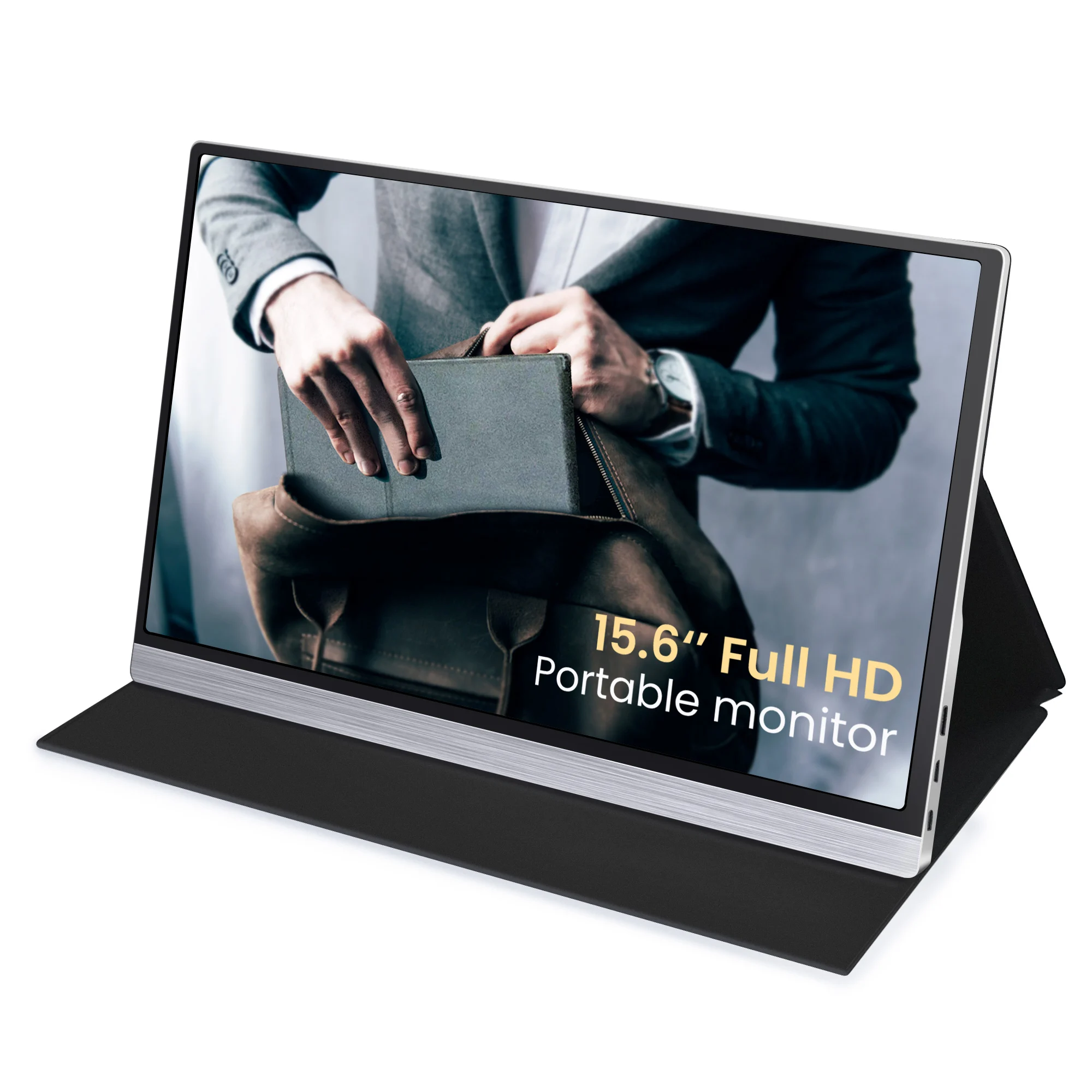

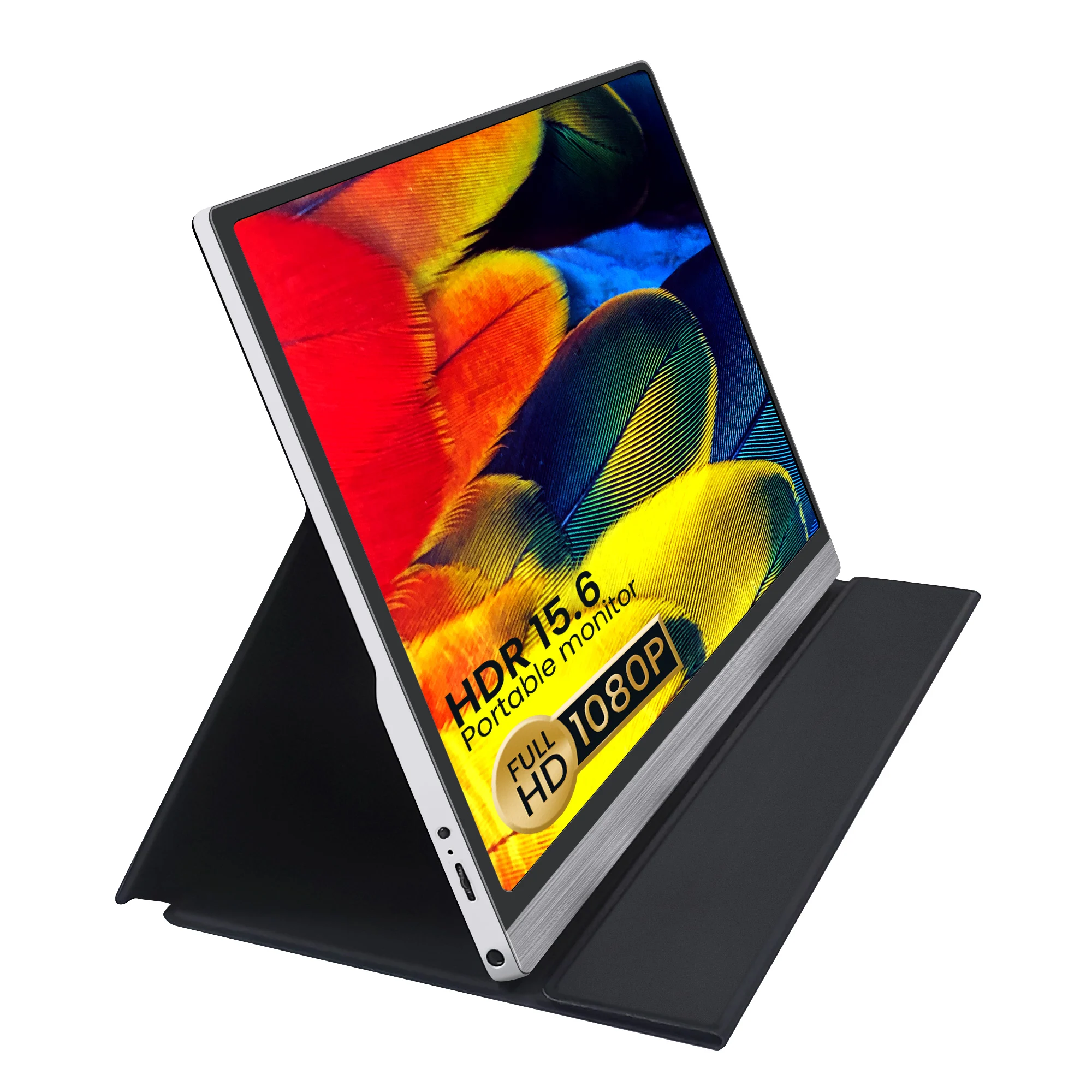

This portable monitor features a 15.6-inch Full HD IPS panel, delivering sharp and vivid visuals with 250 cd/m² brightness, a 1200:1 contrast ratio, and 141 PPI. Thanks to its ultra-slim 4mm bezels and lightweight 766g build, this portable monitor is easy to carry and set up.
It supports convenient one‑cable Type‑C connectivity, Mini HDMI input, and 75×75mm VESA mounting—making it ideal for gamers, remote workers, and travelers. The matte anti‑glare coating effectively reduces reflections, ensuring that this portable monitor performs perfectly as an extended screen for laptops, phones, or gaming consoles like the Switch and PS4.
| LCD Panel | Panel brand | CSOT/BOE/HKC | |
| Panel size | 15.6" LED backligh | ||
| Resolution | 1920×1080 | ||
| Display Area | 344.16(W)×193.59(H) mm | ||
| Surface Treatment | Matte Hard coating 3H | ||
| Brightness | 250 cd/m² (Typ.) | ||
| Contrast ratio | 1200:1 (Typ.) (TM) | ||
| Response time | 5ms | ||
| 10 point PCAP touch | NA | ||
| Pixel Pitch(mm) | 0.17925×0.17925 mm [141PPI] | ||
| Aspect Ratio | 16:9 | ||
| View Angles LR,UD(CR>10) | 85/85/85/85 (Typ.)(CR≥10) | ||
| Refresh rate | 60Hz | ||
| Color gamut | 63% sRGB | ||

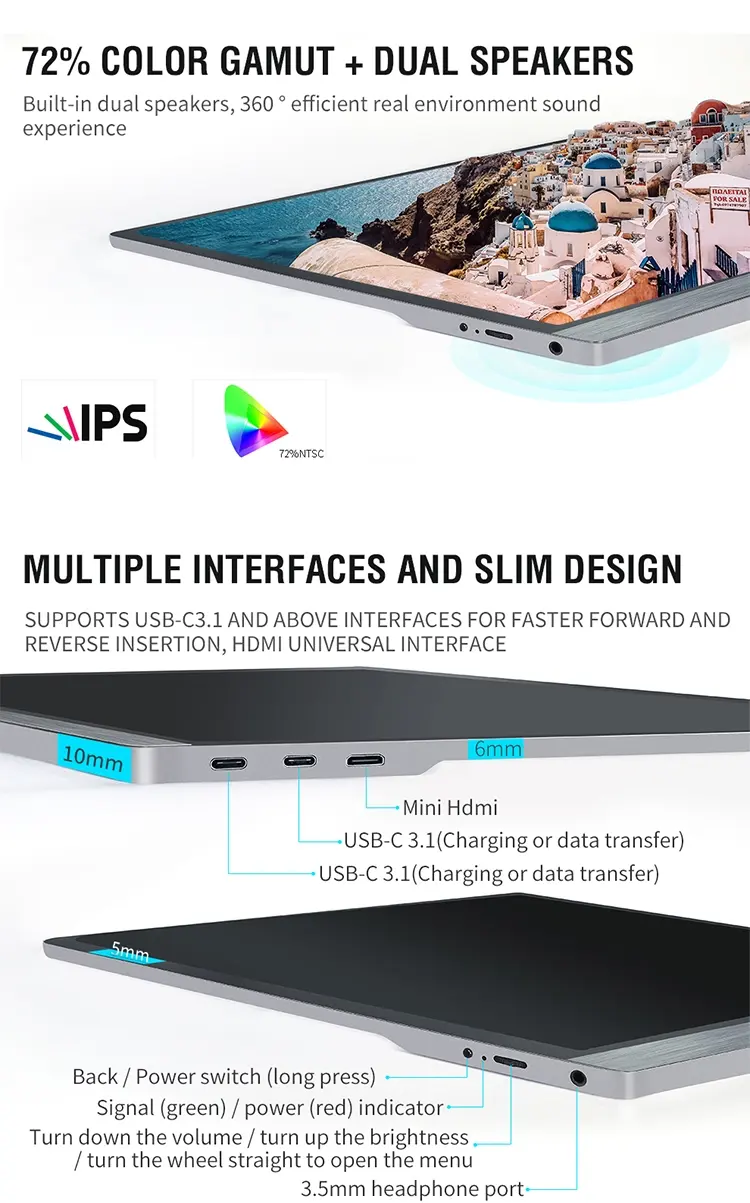

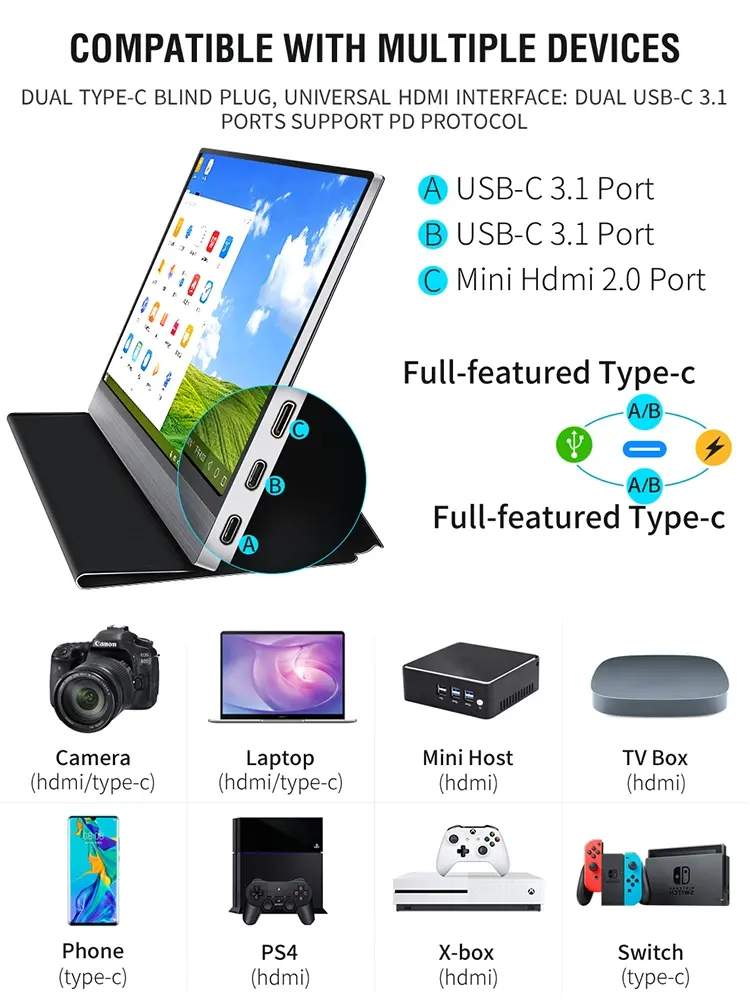

| Interface | Mini HDMI+2*USB Type C | ||

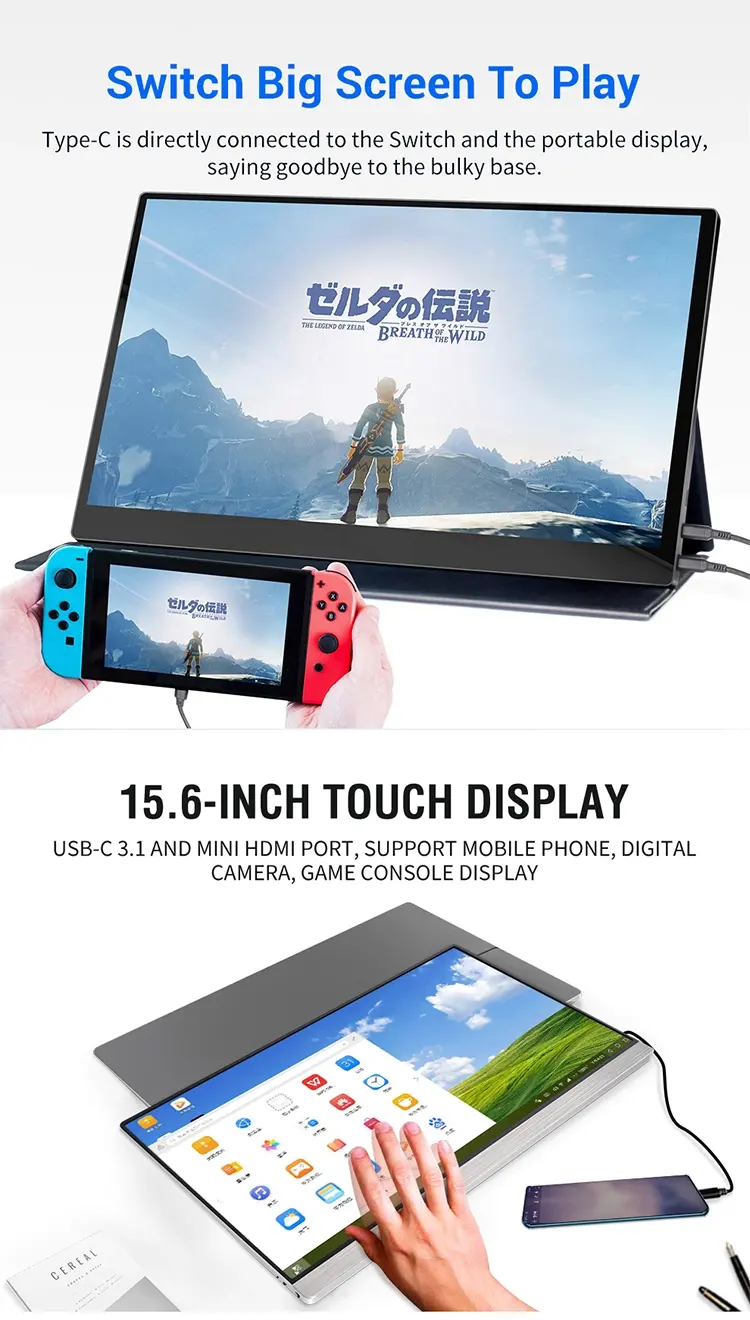

| Hardware supported functions | PS4/XBOX/SWITCH/PC/TVBOX/digital camera | Mini HDMI to HDMI | |
| Laptop tablet | Mini HDMI to Mini HDMI someType-C one cable connection | ||

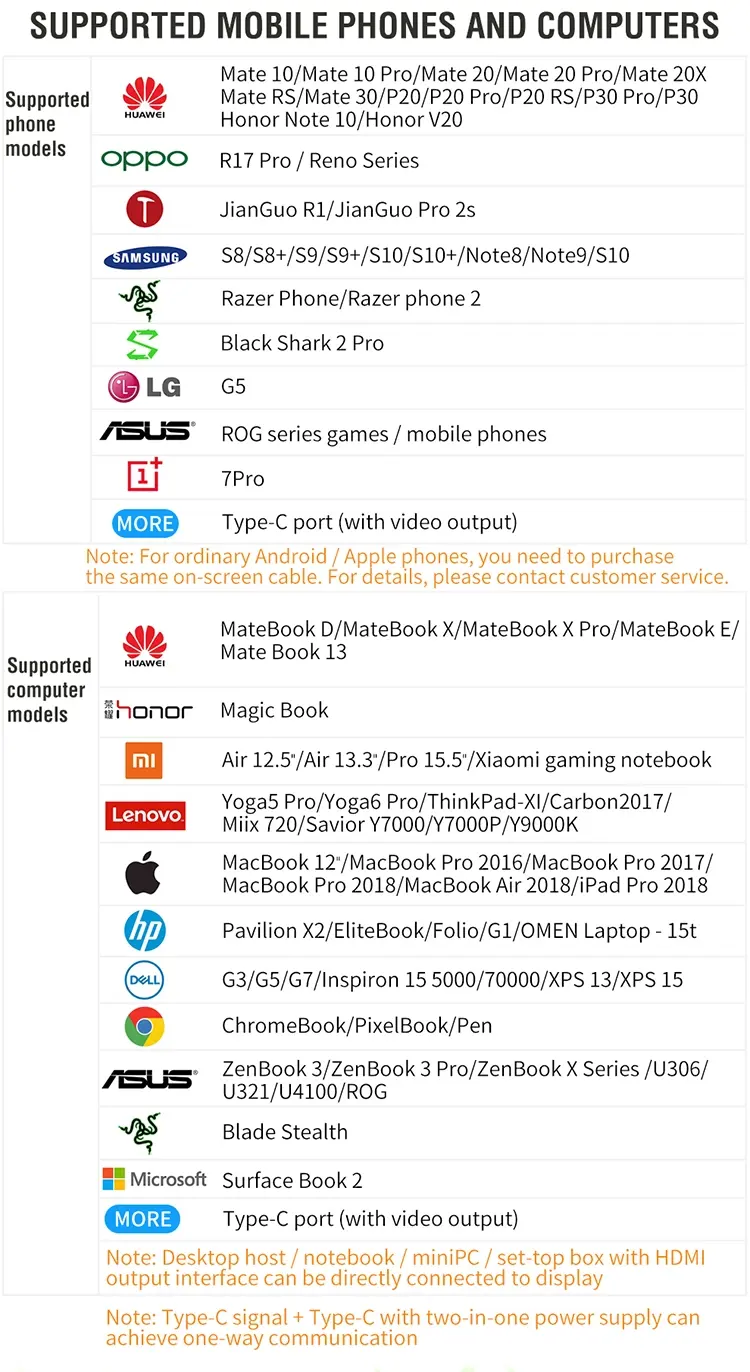

| TYPE-C3.1 full function android Phone | Samsung/Huawei/Nut/Black Shark/Sony/Yijia, etc Frontline communication: mobile mode/PC mode | ||
| Ordinary Android phone | NA | ||
| Iphone | NA | ||
| Apple MACBOOK | Most models support display | ||
| Speaker | 1W*2(8Ω) | ||
| Power consumption | On: ≤10W Standby≤0.5W, Off≤0.5W | ||

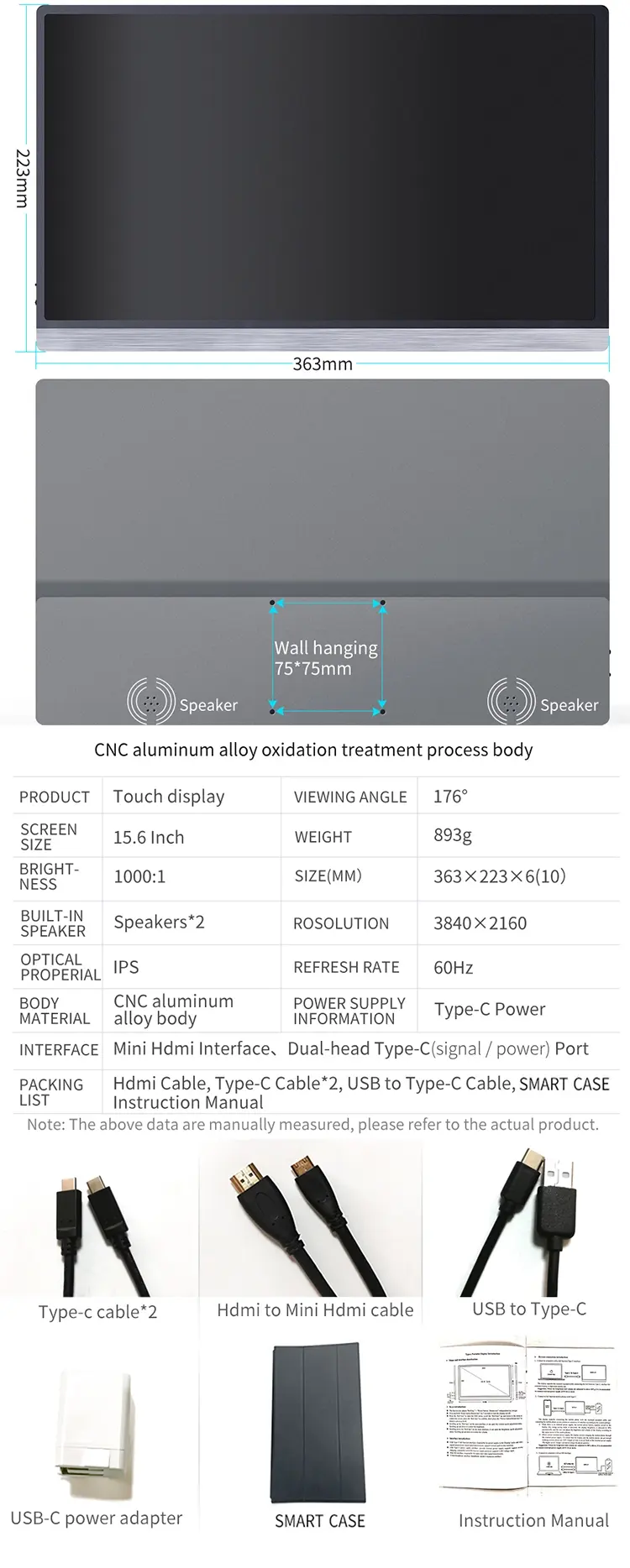

| VESA Mounting | *2 hole75*75 | ||
| Accoessories | HDMi cable, Type C-Type C Cable,USB A-Type C Cable, leather case,Power supply | ||
